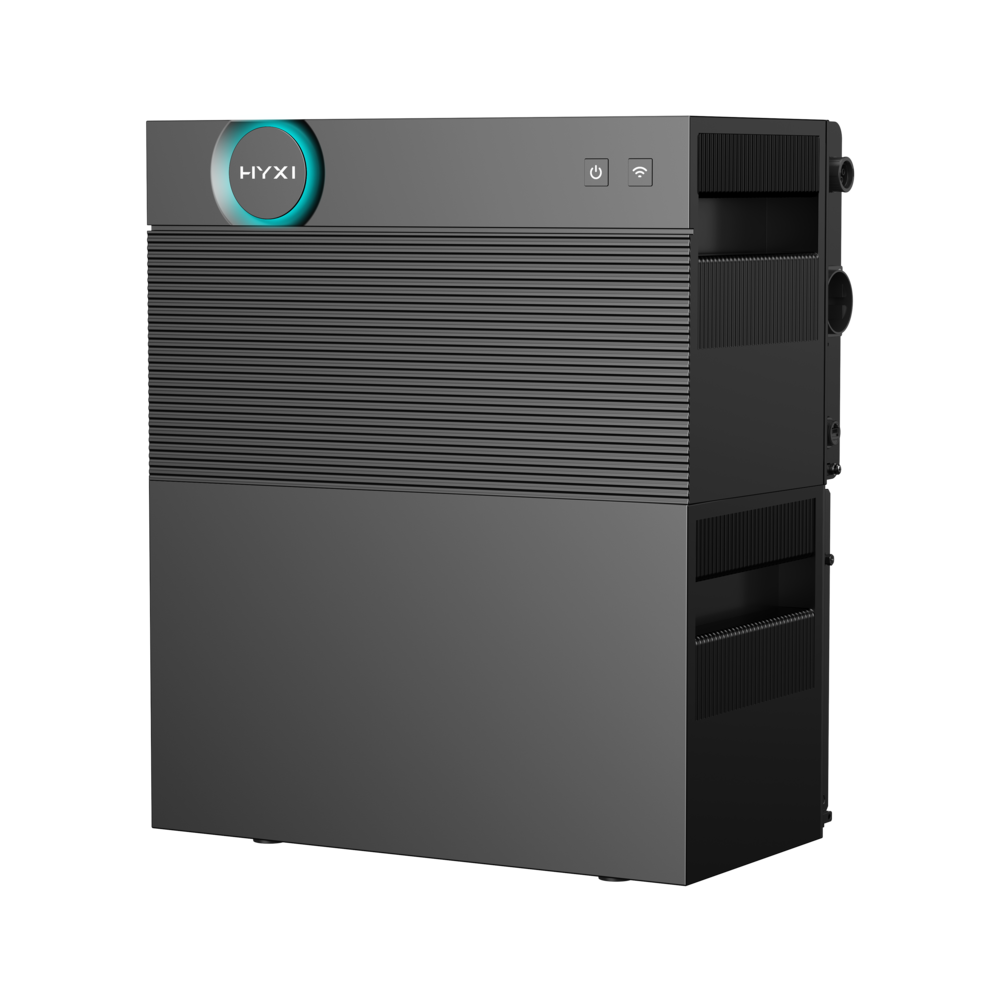

Halo 6 kWh set with P1 and installation

This HYXi Halo set combines the HYX-MS3000AC with one HYX-MS3000B pack. Together they store 6.0288 kWh. A P1 meter and installation in a standard situation are included.

Single-phase storage with 3,000 W system power

Halo connects on the AC side of a single-phase installation, independently of the existing solar inverter brand. With the expansion pack, maximum charging and discharging power is 3,000 W. Standard on-grid output is 800 W. The setting up to 1,500 W requires local approval and authorised personnel.

The P1 meter reads household consumption from the smart meter. DSMR 5.0 is preferred. DSMR 4.0 updates once every ten seconds and requires a separate power supply.

What is included?

The set contains the main unit, one battery pack, the 3 metre AC cable, pack mounting materials, the P1 meter and installation after a site check. Both units weigh 54 kg in total.

We check the mounting location, socket, grounding and distribution board beforehand. Extra cabling, distribution-board alterations and changes to the grid connection are outside standard installation and are quoted separately first.

This is not a three-phase battery. A three-phase property requires an advance check to decide how the single-phase Halo will be connected. The official HYXi manual also requires a qualified technician for this plug-in battery.
