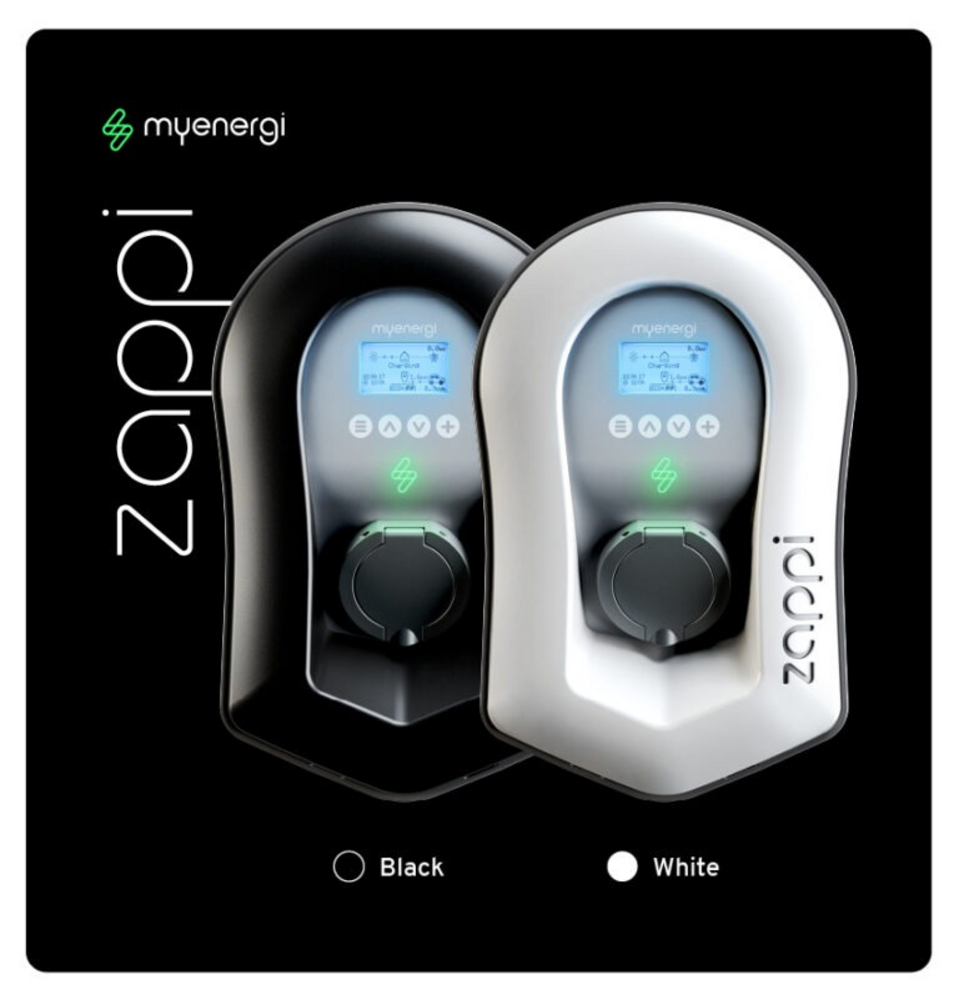

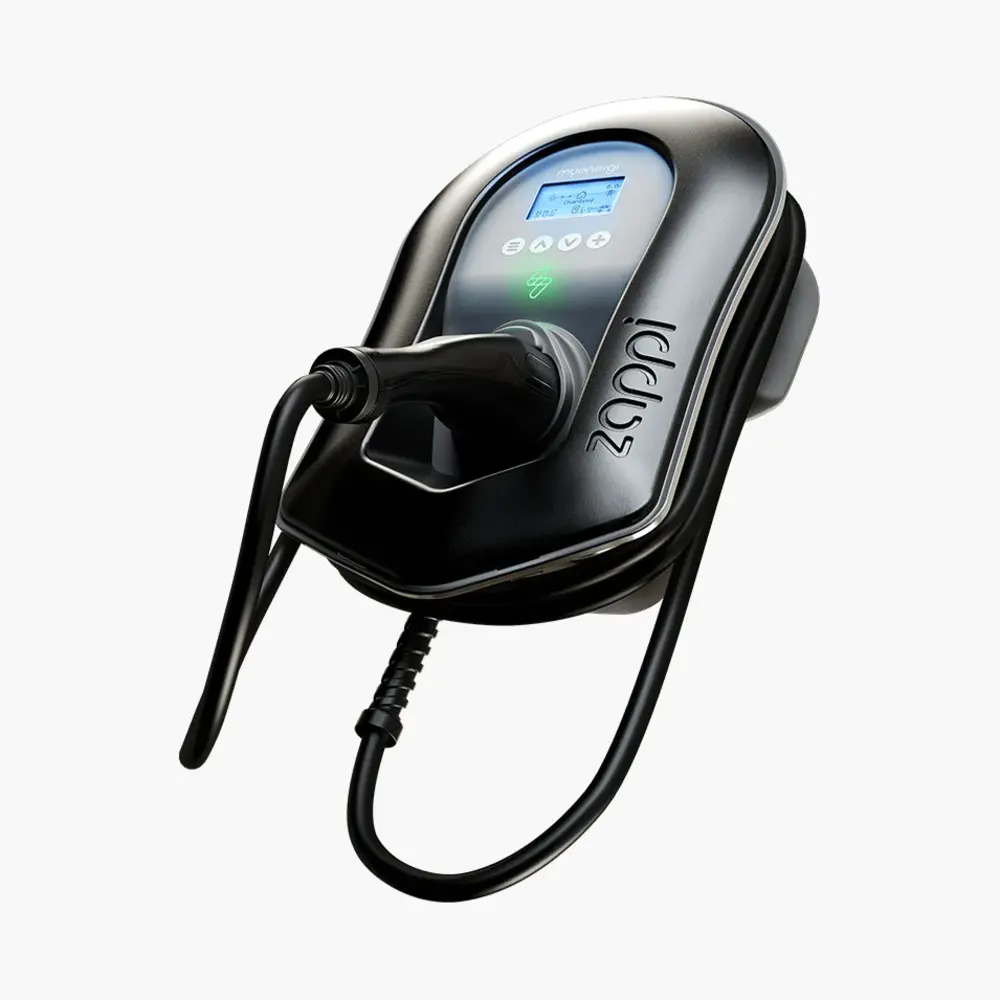

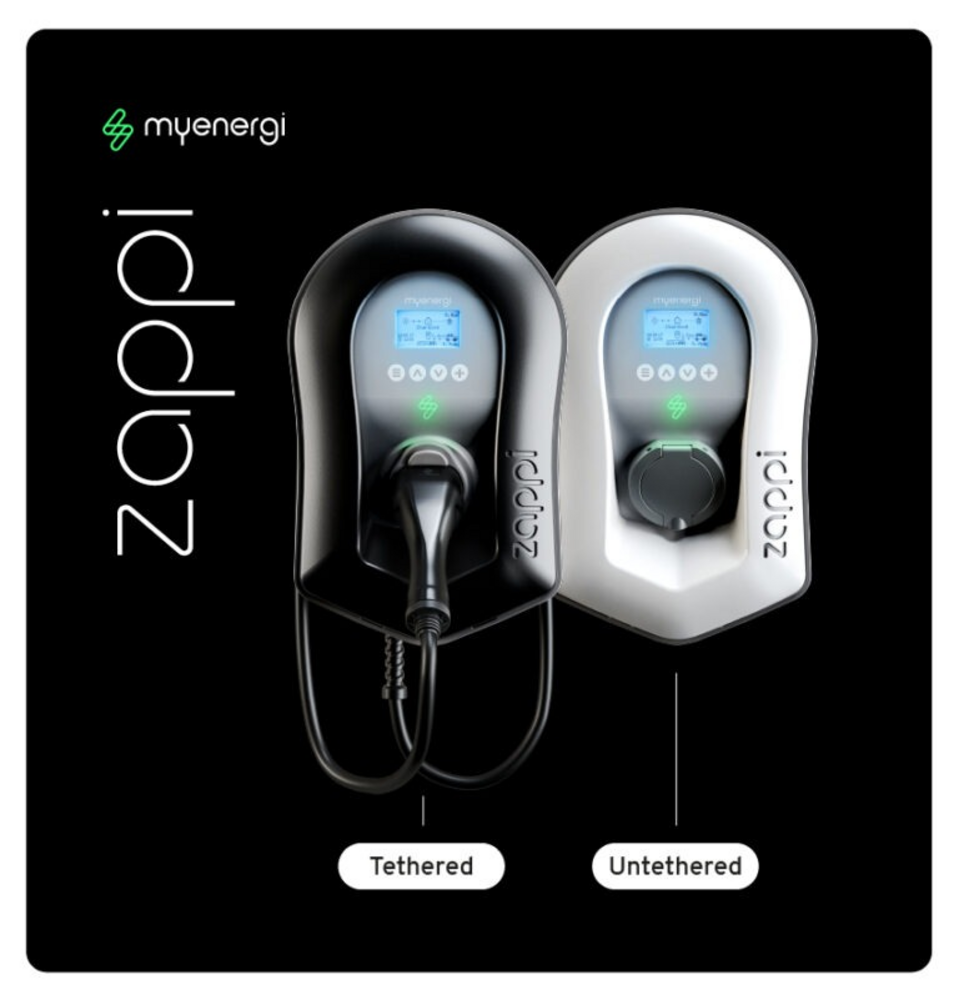

myenergi Zappi v2.1 - 2H22T Tethered 1PH/3PH Black




myenergi zappi v2.1 EV charger 22 kW single- and three-phase, tethered, black is an EV charger from myenergi. This EV charger is meant for charging at a home or small business connection. The meter cupboard and the charging control you want determine the final configuration.
myenergi focuses on how solar power, storage and home charging work together. The chosen Libbi or zappi version determines which parts are needed. On this page we only use product specifications that can be traced back to a stored manufacturer datasheet. For this model these include EV charging power 22 kW, phases three-phase, IP rating IP65.
What can you do with this model?
Place in the system
This EV charger is meant for charging at a home or small business connection. The meter cupboard and the charging control you want determine the final configuration.
Verifiable product data
The table below only shows recorded source values. So you see less marketing language and more information that belongs to this model code.
Combination checked in advance
Before you order, we set inverter, battery and the required control alongside the official compatibility list. A shared brand logo is not enough for that.
Tailoring the installation
Where fixed installation is needed, the electrical situation is assessed beforehand. That way the quote matches the actual work in your home and NEN 1010 remains the starting point.
Verified data
| EV charging power | 22 kW |
|---|---|
| Phases | three-phase |
| IP rating | IP65 |
| Dimensions (H×W×D) | 439 x 282 x 122 mm |
The maximum power on the box does not tell you what your connection can deliver continuously. We check that before installation. With a charge point, we look at what the meter cupboard (the "meterkast" in Dutch homes) can handle at the same time. Smart control can cap peaks, but it does not suddenly make a light connection any heavier. The cable route and mounting spot count too.
Comparing without filling in missing values
For this version, no complete set of sister models with four shared datasheet fields is available locally yet. That is why there is deliberately no numerical comparison here. The model name and product category are known, but we do not fill in missing values from other webshops or from memory.
Who is this a logical choice for?
This model makes sense when the product family already suits your installation and the verified values match your usage. Don't choose based on one big number in the title. Power, capacity and connection each answer a different question. A short intake conversation quickly makes that difference clear.
Also see our EV charging range and the myenergi range. As a verified next step, take a look at myenergi zappi v2.1 EV charger 22 kW single- and three-phase, with socket, black and myenergi ZAPPI-2H22TW.
Frequently asked questions
Will the ZAPPI-2H22TB work with my current installation?
Our verified compatibility mapping includes, among others, the myenergi zappi v2.1 EV charger 22 kW single- and three-phase, with socket, black. We confirm the full combination by model code before you order.
What information do you need for a proper check?
We need the connection in your meter cupboard (the "meterkast" in Dutch homes), plus the exact model code of your existing inverter or battery. For storage we also look at your consumption and the available solar generation.
Can I expand this version later?
We only say so when the manufacturer confirms it for this series. Without that source we do not promise extra modules, parallel set-ups or future interchangeability.
Can you take care of the installation?
Yes, where installation is needed, it can be carried out by a certified installation partner to the Dutch NEN 1010 standard. What materials and which meter cupboard modifications are actually needed is determined in advance.
Why are not all possible combinations listed on this page?
Compatibility changes per generation and firmware line. So we would rather show one verified combination than a long list of doubtful cases.
Add installation straight away?
If the charger goes right next to the meter cupboard, have a look at the facade package. For a spot further along the house there is the wall package. If the charger sits on a post or further away, choose the package with a longer cable route. The packages apply up to and including 10 kW.
Product specifications
- Article number
- ZAPPI-2H22TB
- SKU
- ZAPPI-2H22TB
- Phases
- three-phase
- Dimensions (H×W×D)
- 439 x 282 x 122 mm
- Warranty
- 3 years
- Certifications
- LVD2014/35/EU; EMC 2014/30/EU; EN 61851-1:2019; EN 62196-2:2017; RoHS 2011/65/EU; CE 2014/53/EU
- Included
- 6.5 m Type 2 charging cable; integrated cable holder; clip-on grid sensor(s)
- Suitable for
- Residential
- EV charging power
- 22 kW
